AZ5 DELUXE ALT-AZIMUTH MOUNT HEAD

AZ5 DELUXE ALT-AZIMUTH MOUNT HEAD
  Zoom
AZ5 DELUXE ALT-AZIMUTH MOUNT HEADAZ5 DELUXE ALT-AZIMUTH MOUNT HEADAZ5 DELUXE ALT-AZIMUTH MOUNT HEAD
SRP: £199.00

Product Code:  20312
Brand:  Sky-Watcher



Sky-Watcher

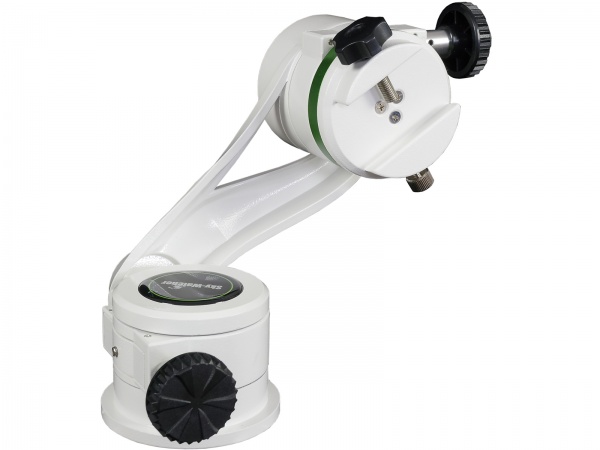

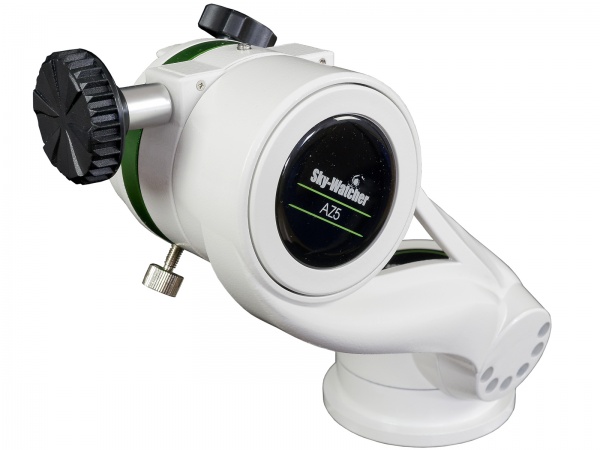

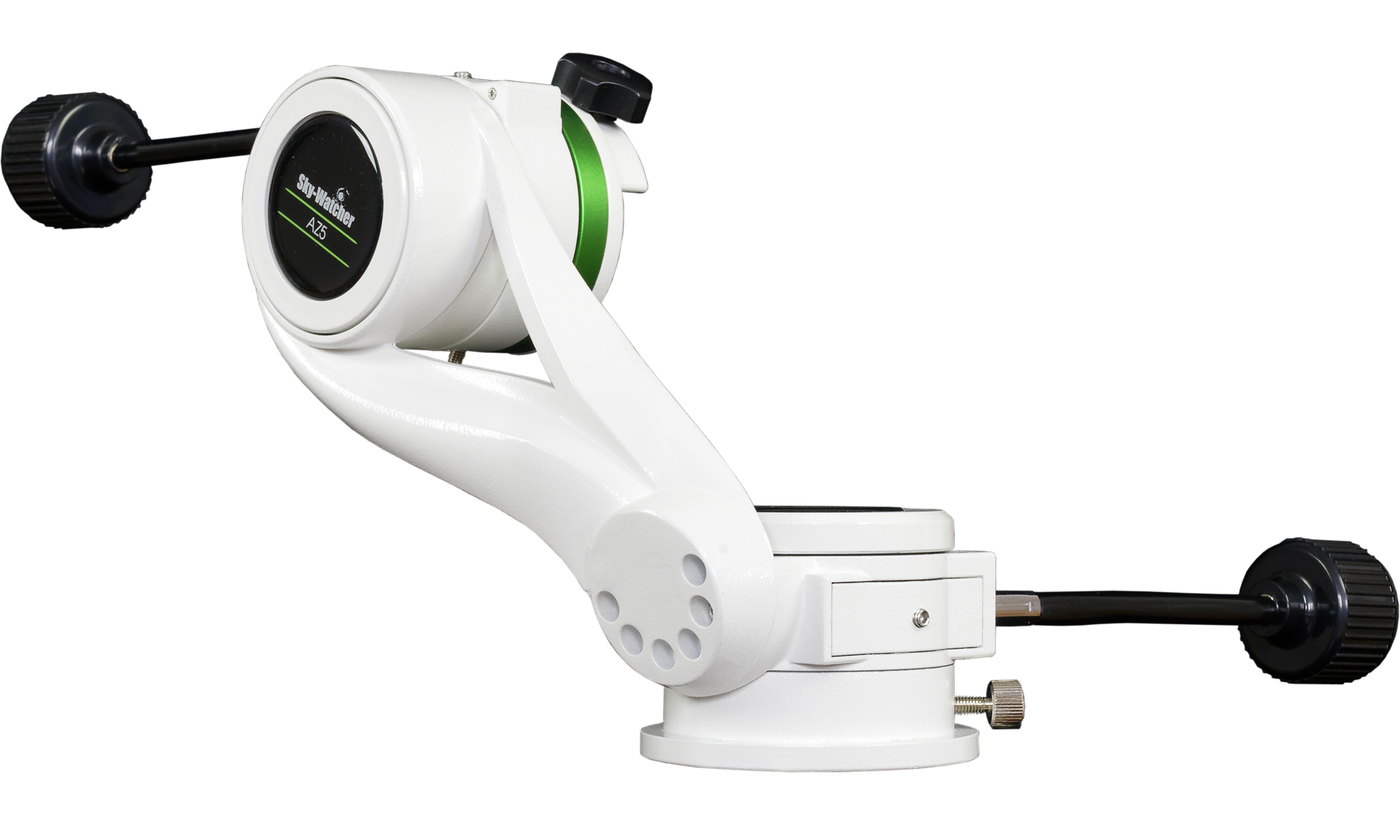

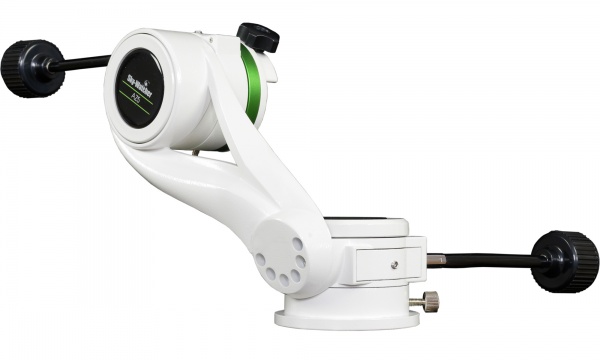

Ideal No Fuss, Grab-and-Go Telescope Mount for Easy Visual Astronomy as well as Daytime Terrestrial Observations!! The AZ5 Deluxe Alt-Azimuth Mount Head can be fitted to any tripod via a standard 3/8" screw connector. Constructed from cast aluminium and designed to attach small telescopes up to 5kg in weight, fitted with a 45mm dovetail bar, or other equipment by using the optional L-bracket (available separately). Supplied with two flexible slow-motion cables, one for vertical and one for horizontal smooth fine motion control. The mount can also be moved manually around each axis, for rapid panning and elevation adjustments.

  • Helical Worm Gear Drive: 96 Teeth Alt & AZ Axes
  • Mount Rotation Angle (Continuous): 360° (Azimuth), -50° to + 90° (Altitude)
  • Payload Capacity: 5kg
  • Two-Position Adjustable Altitude Fork Arm
  • 45mm Sky-Watcher/Vixen Dovetail Saddle
  • 2 x Flexible Slow-Motion Axis Drive Cables
  • 3/8" Threaded Tripod Connection
  • Total Overall Weight: 2.3kg
